- A unique, life size whole body phantom for CT provides a variety of educational application as well as visual evaluation in finding out optimal scanning conditions.
- The phantom can also be used for plain X-ray, showing life-like images.
- No metal parts or liquid structure are used.
- Main joints have close-to human articulation, allowing various positioning for training.
- The phantom can be disassembled into 10 parts.Improved shoulder joint system enables the model to take arm-up position.
- Organs are anatomically correct and have appropriate HU numbers.
Patient positioning:
- Shoulders: rotate through a full 360 degrees in the sagittal plane, approx. 180 degrees to side-ways.
- Hip joints: rotate forward up to approx. 90 degrees, then abduct up to 45 degrees each.
- Knees: bend up to approx. 90 degrees.
- Elbows: bend up to approx. 90 degrees.
- The phantom can be held in the supine frog leg position.

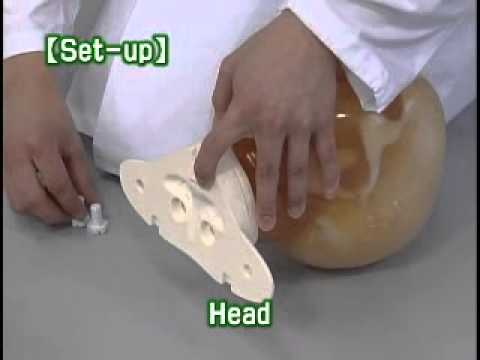

- The limbs and head are detachable at joints and neck for wider applications.
- The head supporter facilitates various head positions.
Internal Organs:Head and Trunk
Synthetic skull Cervical vertebrae
Brain Vertebrae
Clavicles Ribs
Sternum Scapula
Coxal bones Femurs
Lungs with pulmonary vessels
Liver with portal and hepatic veins
Trachea Pancreas
Kidneys Gallbladder
Spleen Aorta
Cava Ureter
Urinary bladder Prostate
Rectum Sigmoid Colon
Original phantom materials:
Radiology absorption and Hounsfield number approximate to human body.
Materials and features:
- Soft tissue and organs: Urethane base resin (SZ-50)
- Synthetic bones: Epoxy base resin
- Joint attachments: Epoxy, urethane with carbon fiber
- Screws: Polycarbonate
| Material | Density g/cm3 |
Effective Atomic Number |
Electron Density x10~23e/g |
Elemental Composituion (wt%) | |||
|---|---|---|---|---|---|---|---|
| H | C | N | O | ||||
| Water | 1.000 | 7.417 | 3.343 | 11.19 | 88.81 | ||
| SZ-50 | 1.061 | 6.14 | 3.258 | 8.41 | 72.25 | 4.61 | 14.73 |
| Soft tissue | Liver | Kidneys | |
|---|---|---|---|
| Hounsfield number (Approximation) | -7 | 70 | 30 |
| Density g/cm3 | 1.061 | 1.089 | 1.075 |
Set includes:
1 whole body phantom PBU-60
(separable into 10 parts)
Synthetic skull, Cervical vertebrae, Brain, Vertebrae, Clavicles, Ribs, Sternum, Scapula, Coxal bones, Femurs, Lungs with pulmonary vessels, Trachea, liver with portal and hepatic veins, Kidneys, Gallbladder, Spleen, Aorta, Cava, Ureter, Urinary bladder, Prostate,
Rectum, Sigmoid Colon are embedded.
1 head supporter
1 set of replacement joint connectors and screws (1 piece for each)
1 flat head screwdriver
1 set of sample X-ray films
Phantom size:
approx. 165 cm height
Phantom weight:
approx. 50 kg
Video
Whole Body Phantom
- CT and X-ray Imaging skill
- Patient positioning
