Whole Body Phantom Type 2

Made in Japan

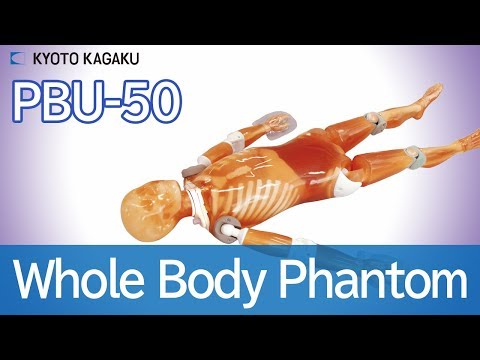

  • The Whole body phantom type 2 is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in the original soft tissue substitute.
  • Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk).
  • There are no metal parts or liquid structures.
Patient positioning:
  • Right shoulder rotates side ways, abducting to a horizontal position.
  • Left shoulder rotates forward, up to a horizontal position.
  • Elbows bend inward to approx. 90 degrees.
  • Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
  • Knees bend to approx. 90 degrees.
  • The phantom can be held in the supine frog leg position.
  • The limbs and head are detachable at joints and neck for wider applications.
  • The head supporter facilitates various head positions.
  • Life size synthetic skeleton
  • Hands and feet with bone trabeculae
  • Lungs with pulmonary vessels
  • Mediastinal space
  • Liver
  • Kidneys
Original phantom materials:
Radiology absorption and Hounsfield number approximate to human body.
Materials and features:
  • Soft tissue and organs: Urethane base resin (SZ-50)
  • Synthetic bones: Epoxy base resin
  • Joint attachments: Epoxy, urethane with carbon fiber
  • Screws: Polycarbonate
Soft tissue (SZ-50) material
Material Density g/cm3 Effective Atomic
Electron Density
Elemental Composituion (wt%)
Water 1.000 7.417 3.343 11.19     88.81
SZ-50 1.061 6.14 3.258 8.41 72.25 4.61 14.73
  Soft tissue Liver Kidneys
Hounsfield number (Approximation) -7 70 30
Density g/cm3 1.061 1.089 1.075
Set includes:
        1 whole body phantom
           (separable into 10 parts)
           Synthetic bones, pulmonary vessels, mediastinal space, liver, kidneys are embedded
        1 head supporter
        1 set of replacement joint connectors and screws (1 piece for each)
        1 flat head screwdriver
        1 set of sample X-ray films
Phantom size:
        approx. 165 cm height
Phantom weight:
       approx. 50 kg


Whole Body Phantom Type 2

  • CT and X-ray Imaging skills
  • Patient positioning
